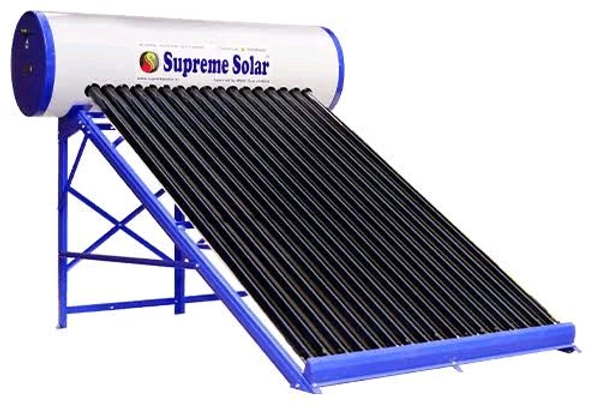

SUPREME SOLAR GLASS LINED 220LPD
₹ 25,000 / Piece
₹ 32,000
22%
Minimum Order Quantity is 1 pcs
| Tube Specifications | |
| Vacuum Tube outer diameter | 47mm/58mm |
| Vacuum Tube inner diameter | 37 mm&47mm |
| Tube length | 2100mm. |
| Tube Weight | 30kg.(For 220 LPD) |
| Tank Specifications | |
| Inner tank material | Enamel Steel of 2mm &2.5 mm with the Glass Lined Coating |
| Outer tank material | Powder Coated/Stainless Steel. |

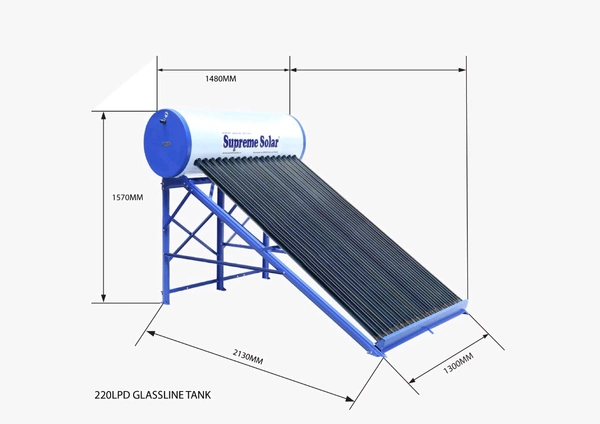

| Tank Dimensions | 1480mm. |
| Inner Tank Diameter | 210mm. |
| Outer Tank Diameter | 550mm. |
| Tank Weight | 54.9kg.(For 220 LPD) |
| Tank Insulation | 50mm high-quality PUF materials. |
| Tank Volume | 110,165,220,275 LPD |
| Inner Dish | 2.5 mm |
| Outer Dish | Aluminium with Powder Coated |
| General Specifications | |
| Temperature | 65 degrees C to 85 degrees C |
| Total Space Required For Installation | 2*2.5m (W*L). |
| Total System Weight | 105kg (Approx).(220 LPD) |
| Stand Dimensions | 1050*1150*2160mm (H*W*L) |
| Stand Weight | 21kg (For 220 LPD) |
| Frame Angle | 27 degrees |
