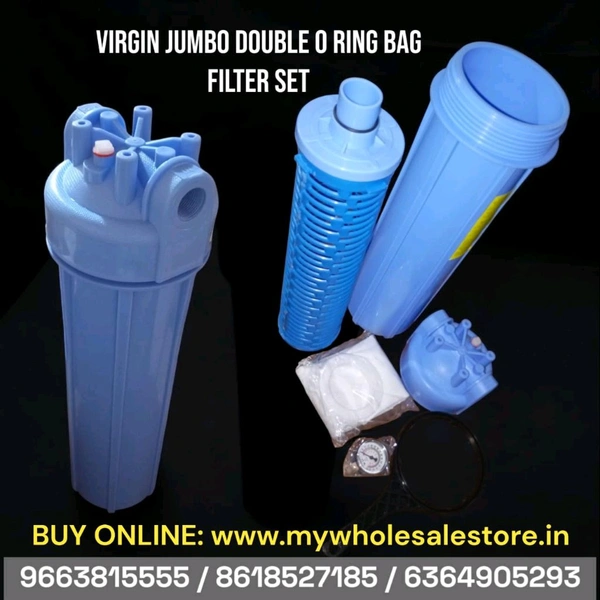

JUMBO HOUSING BAG FILTER SET | VIRGIN | 20 INCH | 1 INCH |BAG FILTER | BAG FILTER FOR WATER TANK | WHOLE HOUSE WATER FILTER 20 INCH 5 MICRON TANK FILTRATION SYSTEMS (1 INCH IN-OUT WITH OUT MOUNTING PLATE)
₹ 1,600 / Piece
₹ 1,700
6%
Highlights
Cartridge filter housing is an integral part of the water filtration process, used in the pre filtration and post filtration scheme, it houses cartridge filters which helps in removing small suspended particles from the water. With its unique design and high pressure retention nature these housing show remarkable consistency in water treatment applications.
Specifications :-
These housing are made up using high quality virgin polypropylene for durable and leak proof construction.
As these have thick walls therefore can withstand high pressure and have longer life.
With sleek design and easy maintenance these housing ensures comfortable change of cartridge and makes it most suitable for use in RO System, UV Sterilizers, Carbon filters and other water treatment technologies.
With a wide range of connection sizes these are suitable for various requirements.
Warranty of Product 1 Year against Manufacturing Defects
Technical Specifications:
Materials
Housing Sump / Top Polypropylene
Vent Polypropylene with Stainless Steel Spring and Screw
“O”-ring / Gasket Silicon, FKM, Buna-N, EPDM
Suitable cartridge
Length 20”
Diameter 4.5”
End Connection DOE / Zero Leak (for 4.5” OD Cartridges only)
Configuration
Housing Size 10”
Diameter Jumbo (for 4.5”)
Connection Type BSP (F) Threaded
Connection Size (Jumbo) 1”, 1.5”
Operating conditions
Maximum operating pressure 0.8 MPa (8.0 bar; 113.7 psid) @ 21°C (69.8°F)
Operating temperature range 4°C ( 39.2°F ) to 70°C ( 158°F )
Flow rates
20” Jumbo upto 8 m3 /hr
